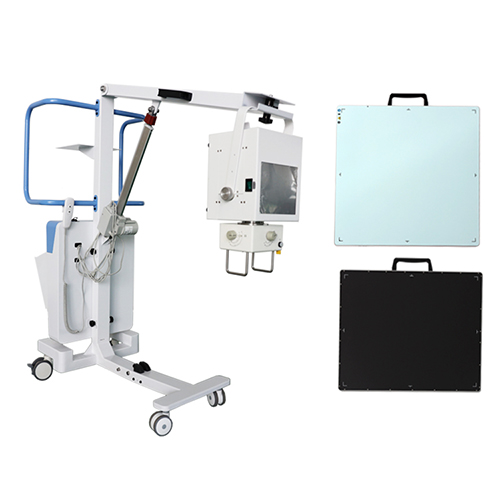

Mobile DR: Integrated Radiographic Imaging System

Mobile DR is an all-in-one radiology imaging device that integrates imaging, control and mobile platform, with its core composed of 5 major functional modules.

1. X-Ray Generation Module
‌X-ray Tube‌: The core component that converts electrical energy into X-ray energy, available in stationary anode and rotating anode two types.
‌High-Voltage Generator‌: Converts conventional mains power into the required high voltage and tube current for the X-ray tube, directly determining the equipment’s safety performance and service life.
‌Collimator‌: Features continuously adjustable X-ray radiation field, which improves radiography quality and effectively reduces extra radiation exposure for medical staff and patients.
2. Digital Imaging Acquisition Module
‌Flat Panel Detector‌: Mainly categorized into a-Si (amorphous silicon) and a-Se (amorphous selenium) types, which directly converts X-ray signals into digital signals.
Eliminates the traditional film developing process, and outputs high-definition images within seconds after exposure.
3. All-In-One Image Processing Workstation
Integrates dual systems of image acquisition and X-ray exposure control, enabling real-time processing and clear image display on the monitor.
Compliant with Dicom 3.0 protocol, it can directly connect to hospital PACS systems and transmit images via high-speed wireless network.
4. Motor-Driven Mobile Stand Platform
Adopts dual-wheel dual-drive electric power-assisted design, supports zero-radius turning, enabling flexible movement even in narrow spaces.
The column, cross arm and tube head support multi-angle rotation and telescoping, making it possible to complete standard position radiography for bedridden critical patients.
5. Auxiliary Supporting Module
Built-in large-capacity battery pack, supports multiple sets of radiography operations even without external power supply.
Equipped with intelligent dose control function, which minimizes radiation exposure risk while ensuring optimal image quality.
