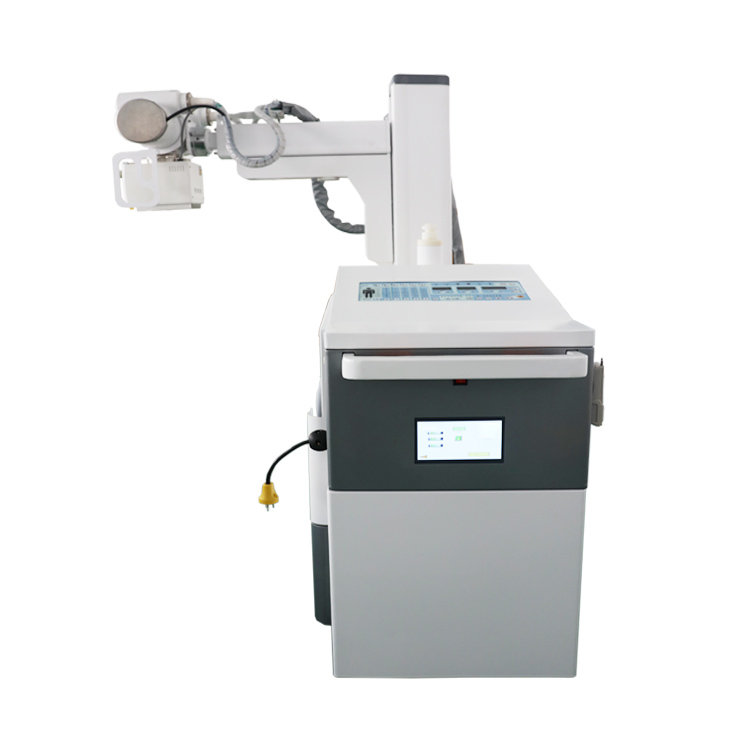

400mA Mobile DR X-Ray Machine – Complete Component Breakdown & Practical Clinical Radiography Applications
Mobile DR X-ray equipment with 400mA rated current has become a staple piece of diagnostic gear for county hospitals, community clinics and emergency medical teams, solving the longstanding limitation of fixed X-ray machines confined inside dedicated radiology rooms. Thanks to its wheeled mobile trolley design and built-in backup battery system, this 400mA mobile digital radiography unit delivers on-site imaging at wards, emergency rooms and even temporary field medical spots, focusing on human body chest, limb, pelvis and lumbar spine radiographic examination. Below we break down its core configuration and authentic clinical application scenarios from real medical facility deployment.
Four Core Component Composition of 400mA Mobile DR X-Ray System
The whole 400mA mobile DR set is assembled by four indispensable core modules: X-ray tube assembly, X-ray collimator, wireless flat panel DR detector and high-frequency high voltage generator, every part defines its final imaging performance and mobility advantages.
1. 400mA Rated X-ray Tube Unit
As the radiation source core, this bifocal X-ray tube comes with 0.6mm and 1.2mm dual focal spot sizes, supporting peak 400mA tube current and maximum 125kV tube voltage at 32kW rated power. Its tube head can vertically lift between 950mm to 1850mm above ground and swing ±90° laterally, locking stably at any position from 1250mm to 1600mm focal range. The 2700rpm anode rotation speed plus 220kHU heat capacity effectively avoids overheating damage during continuous shooting for multi-patient emergency checks.
2. Precision X-ray Collimator
Matched with the X-ray tube head, the collimator runs on 24V DC/AC 150W power supply with 1mmAl minimum inherent filtration. When SID hits 1m, its maximum radiation coverage reaches 43cm×43cm, allowing clinicians to flexibly limit irradiation area, cut extra scattered radiation to patients and medical staff during bedside radiography.
3. 14×17 Inch Wireless Flat Panel DR Detector
This amorphous silicon TFT wireless flat panel is the digital imaging carrier of the whole DR system, with 3.5lp/mm spatial resolution and 16-bit grayscale depth, built-in 2560×3072 pixel matrix. Data transmits wirelessly or via Gigabit Ethernet, finishing full image acquisition within only ≤4s. The 14”×17” large panel perfectly covers full human chest or whole lower limb in one single exposure, removing the need for repeated film splicing.
4. 32kW High Frequency High Voltage Generator
Working at 40kHz inverter frequency, the high voltage generator supports adjustable parameters: 40kV~125kV tube voltage (1kV per step), 10mA~400mA tube current and 0.1~320mAs mAs range. Adopting digital closed-loop 32-bit microprocessor real-time control, it stabilizes output dose accuracy; multi-layer safety protection includes overvoltage, undervoltage, tube overcurrent and overload auto-shutdown with fault prompt. Paired with dual battery-capacitor energy storage design, the generator supports more than 20 times offline radiography without mains electricity.
Key Structural & Functional Highlights Optimized for Mobile Medical Scenarios
Beyond core parts, the complete mobile trolley body brings practical convenience for frontline medical work:
- Power-assisted moving trolley cuts physical labor for nurses and radiographers when shifting the whole unit between inpatient floors; auto-retractable power cable avoids messy winding during ward transfer.
- Optimized heat dissipation structure safeguards X-ray tube surface under long-hour continuous emergency shooting.
- Full wireless DR workflow eliminates cumbersome wired layout, radiologists preview high-definition digital chest/lumbar images instantly on connected laptop after exposure.
Real Clinical Application Fields for 400mA Mobile DR X-Ray
1. Bedside Radiography for Bedridden Inpatients in General Ward
Elderly paralyzed patients, post-surgery immobilized patients and critical ICU patients cannot move to fixed radiology departments for regular checks. Hospitals deploy this 400mA mobile DR to complete bedside chest radiography, lumbar spine and limb fracture scanning directly beside sickbeds. No risky patient transfer reduces secondary injury risk caused by bumpy transport.
2. Emergency Trauma First Aid Radiography
For emergency department accident casualties with pelvic fracture, compound limb injury or suspected rib fracture after traffic accidents, the mobile DR cart rolls quickly into emergency treatment room to finish instant radiographic positioning. Rapid digital imaging shortens diagnosis waiting time and guides surgeons to make fast operation plans.
3. Grassroots Clinic & Temporary Field Medical Service
Community health centers lacking independent radiology rooms and mobile field medical teams use this 400mA DR unit for routine physical chest screening and rural outreach physical exams. Offline battery shooting function guarantees normal radiography when outdoor mains power is unavailable.
Why 400mA Mobile DR Stands Out in Current Medical Radiography Market
Different from low-power portable X-ray machines and bulky fixed DR equipment, the 400mA mobile DR balances high diagnostic power and flexible mobility: its 32kW high power satisfies full-size human torso imaging demand same as stationary DR, while wheeled trolley + backup battery breaks site limitation of traditional fixed X-ray rooms. For small and mid-sized medical institutes with limited renovation budget, it is a cost-effective upgrade option to realize full digital mobile radiography.
